Introduction: Modern Challenges in Concrete Column Construction

In contemporary construction, the increasing complexity of architectural designs combined with economic pressures to enhance speed and productivity has confronted contractors with unprecedented challenges. Executing a large number of reinforced concrete columns with large and variable cross‑sections—a common requirement in high‑rise buildings, bridges, and special structures—has become a difficult and time‑consuming process when using traditional formwork systems.

Despite their relative flexibility, conventional modular systems often create execution bottlenecks due to the high number of small components, numerous connections, and time‑consuming assembly processes. Moreover, they inevitably leave joint lines that require additional finishing operations and incur extra costs. On the other hand, timber formwork, due to its limited service life, vulnerability to moisture, and poor quality of the final concrete surface, fails to meet the demands of modern large‑scale projects. These limitations clearly highlight the growing need for an integrated and engineered solution.

What Is the ZEMAX Variable Column Formwork?

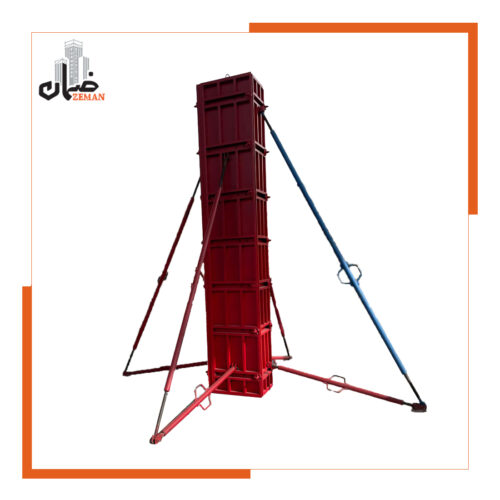

The ZEMAX Variable Column Formwork, also known as sliding column formwork or panelized column formwork, is an integrated modular system that replaces numerous small panels with four large panels (large panels). These panels are intelligently designed to slide and adjust at fixed intervals (typically 5 or 10 cm). This unique feature allows rapid and precise adjustment of column cross‑section dimensions without the need to fully dismantle or replace formwork components.

This system is an ideal solution for projects in which column dimensions vary between floors or different structural zones and where a high degree of flexibility in the formwork process is required.

Introducing the ZEMAX Solution: More Than a Formwork, a Comprehensive System

The ZEMAX Variable Column Formwork has been developed as an innovative response to these challenges. This product is not merely a construction accessory; it is a modern, economical, and comprehensive formwork system engineered to fully optimize the execution of concrete columns. Designed to drastically reduce assembly and execution time while delivering unmatched concrete surface quality, ZEMAX redefines efficiency through a paradigm shift from fragmented components to an integrated system. This transformation enhances productivity across all project phases—from site logistics to concreting and stripping operations.

This strategic shift from component management to system deployment represents one of ZEMAX’s core advantages. Traditional modular systems consist of hundreds or thousands of separate parts: small panels, pins, wedges, clamps, and accessories, all of which create serious storage and logistics challenges on busy construction sites. In contrast, the ZEMAX system is composed of four large primary panels and a minimal set of robust, essential accessories. This fundamental difference transforms workflow efficiency at the job site.

Instead of time‑consuming piece‑by‑piece assembly, site crews use cranes to position and adjust a limited number of pre‑engineered large units. As a result, adopting ZEMAX is not merely a tooling upgrade, but a strategic operational decision that reduces site complexity, minimizes the risk of lost components, simplifies logistics, and significantly lowers assembly errors—securing one of the most critical pathways in project scheduling.

Anatomy and Advanced Engineering of ZEMAX Formwork: A Deep Look into Components and Mechanisms

Main System Components

The exceptional performance of the ZEMAX Variable Column Formwork results from the precise coordination of its engineered components, each playing a critical role in efficiency, speed, and final quality.

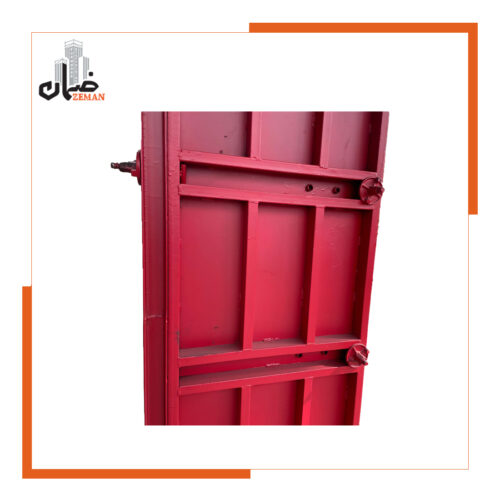

Large Panels: These monolithic panels form the core of the system and shape the column faces. Their continuity is the key to achieving a smooth, joint‑free exposed concrete surface. The facing plates are manufactured using steel sheets with thicknesses of up to 5 mm, which increases initial weight and cost but dramatically enhances resistance to fresh concrete hydrostatic pressure and overall durability.

Sliding Mechanism: This feature is the heart and defining characteristic of the ZEMAX system. The panels are designed to slide relative to each other, allowing precise adjustment of column cross‑section dimensions at fixed intervals (typically 5 or 10 cm), without dismantling the entire formwork. This mechanism allows a single formwork set to be used for columns of different dimensions—for example, from a $90\times 90$ cm section up to $120\times 120$ cm.

Key Accessories:

• Connections: Unlike the traditional pin and wedge system used in modular formworks, ZEMAX primarily employs fast and heavy‑duty connectors such as fully threaded tie rods, wing nuts, and washer plates, ensuring strong and reliable connections.
• Plumb Adjustment Props: These adjustable inclined props are essential for ensuring precise vertical alignment of the column formwork prior to concreting and guaranteeing stability during operation.
• Soldiers (Strongbacks): For high columns, vertical steel soldiers are used to reinforce the panels against the significant pressure of fresh concrete, preventing deformation or deflection.
• Working and Concreting Platform: This integrated platform is a critical safety feature, providing a secure and stable working area at height for concreting and vibration operations.

Operating Principle and Dimensional Adjustment

The dimensional adjustment process in the ZEMAX system is designed to be both intelligent and highly efficient. To change the column cross‑section, operators simply loosen the connecting bolts, slide the panels to the required dimension—marked at 5 or 10 cm intervals—and then re‑tighten the bolts.

This straightforward process completely eliminates the need for adding or removing filler panels, which is unavoidable in conventional modular systems. The ZEMAX system supports both square and rectangular sections, and by installing chamfer strips along the inner corners of the formwork, chamfered column edges can be achieved—enhancing aesthetics while preventing edge damage.

Technical Specifications: Figures That Prove ZEMAX Superiority

For engineers and project managers, accurate technical specifications serve as a benchmark for evaluating product suitability and investment justification. ZEMAX Variable Column Formwork is manufactured in accordance with high quality standards and premium raw materials.

Raw Material Quality

One of the most critical factors ensuring the durability and performance of ZEMAX formwork is the company’s commitment to premium raw materials. All formworks are manufactured using ST37‑grade steel sheets produced by Mobarakeh Steel Company, widely recognized in Iran as a benchmark for steel quality and strength. This strategic choice directly results in longer service life, higher reuse capability, superior resistance to deformation under concrete pressure, and ultimately, a better return on investment for the client.

Technical Specifications Table – ZEMAX Variable Column Formwork

This table serves as a comprehensive technical reference, providing key information required for evaluation, planning, and project procurement.

Strategic Advantages of ZEMAX Variable Column Formwork in Construction Projects

1. Execution Speed: Productivity Increased by up to Four Times

One of the most prominent advantages of this system is the dramatic increase in execution speed. Studies indicate that productivity can improve by up to four times compared to conventional modular systems. This improvement results from eliminating time‑consuming small‑component assembly, reducing the number of connections, and enabling rapid dimensional adjustment between concreting stages. In multi‑story projects, these time savings can shorten overall schedules by weeks or even months.

2. Exceptional Surface Quality: Seamless Exposed Concrete

The use of monolithic large panels completely eliminates joint lines, a defining feature of modular formworks. The result is a perfectly smooth and uniform exposed concrete surface immediately after stripping. This advantage eliminates secondary finishing works such as plastering, grinding, or patching, leading to significant savings in labor, materials, and time.

3. Large‑Scale Economic Efficiency

Although the initial purchase cost of ZEMAX Variable Column Formwork may be higher than modular or timber systems, its economic evaluation must be based on Total Cost of Ownership (TCO). The final project cost depends on equipment costs, labor expenses, surface finishing, material waste, and delays.

By drastically reducing labor hours, eliminating finishing costs, and minimizing schedule delays, ZEMAX significantly lowers the overall project cost. Despite the higher initial investment, the system delivers faster ROI and offers superior economic performance in large or repetitive projects.

4. Exceptional Design and Execution Flexibility

Easy dimensional adjustment provides architects and structural engineers with greater design freedom. A single ZEMAX formwork set can accommodate columns that reduce in size at upper floors—a common engineering practice. This adaptability greatly simplifies site logistics, reduces storage requirements, and minimizes transportation costs.

5. Enhanced Structural Integrity and Strength

The use of this system enhances structural integrity and resistance to stresses. A fully engineered, monolithic column without joints offers uniform load‑bearing capacity. The rigidity of the large‑panel system prevents bulging or deformation during concreting, ensuring full compliance with design specifications.

Comparative Analysis: ZEMAX vs. Traditional Systems (Modular and Timber)

Conclusion: Why Choose ZEMAX for Your Next Project?

ZEMAX Variable Column Formwork represents a generational leap in concrete formwork technology, delivering tangible advantages across five key areas: unmatched execution speed, superior concrete surface quality, reduced total project costs, exceptional design flexibility, and enhanced site safety.

ZEMAX as a Strategic Partner

Choosing ZEMAX goes beyond purchasing equipment; it is a strategic partnership with a company committed to your project’s success. By delivering a superior system supported by fully robotic manufacturing technology, ZEMAX provides not just a tool, but a comprehensive solution to modern construction challenges.

Call to Action

We invite you to contact the ZEMAX technical sales team. Our experts are ready to provide professional consultations, project‑specific cost estimates, and demonstrate how the ZEMAX Variable Column Formwork system can transform your next construction project.
